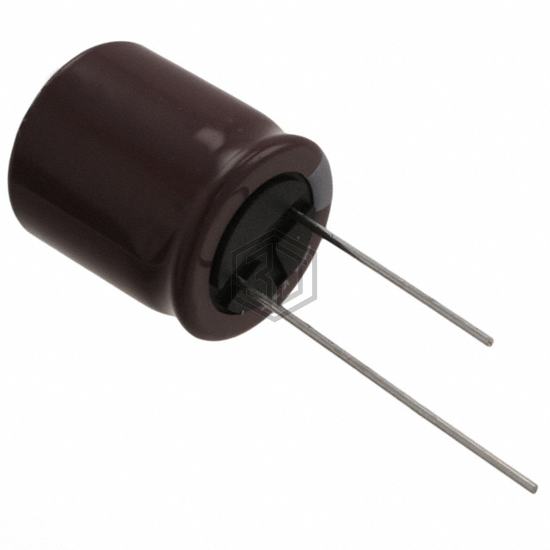

CAP ALUM 820UF 20% 100V RADIAL
KZE100VB821M18X40LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 820UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,735
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.62 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KZE100VB821M18X40LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2C821MELC | Nichicon | CAP ALUM 820UF 20% 160V SNAP | 77% | View |
| EEU-FC1J821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 63V RADIAL | 77% | View |
| B41890A6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 71% | View |
| B43252B2827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 68% | View |
| B43509B2827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 65% | View |
| LGW2D821MELZ45 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 58% | View |
Submit your RFQ for KZE100VB821M18X40LL and get a quote within 24 hours.
