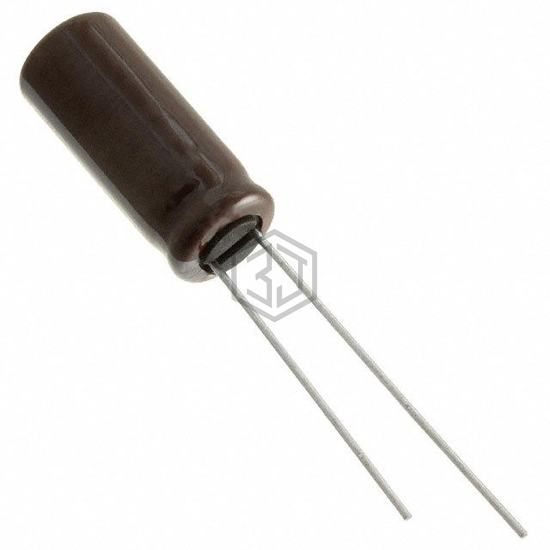

CAP ALUM 1200UF 20% 6.3V RADIAL
KY6.3VB122M8X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,593
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY6.3VB122M8X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D128F6R3DS5D | Vishay Sprague | CAP ALUM 1200UF 6.3V RADIAL | 100% | View |
| ETA128M6R3AG6AA | KEMET | CAP ALUM 1200UF 20% 6.3V RADIAL | 100% | View |
| EEU-FC0J122LB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 97% | View |
| KY6.3VB122M10X16LL | United Chemi-Con | CAP ALUM 1200UF 20% 6.3V RADIAL | 92% | View |
| 6.3ZLG1200MEFCT810X16 | Rubycon | CAP ALUM 1200UF 20% 6.3V RADIAL | 68% | View |
| 860020578019 | Würth Elektronik | CAP ALUM 1200UF 20% 35V RADIAL | 68% | View |
Submit your RFQ for KY6.3VB122M8X20LL and get a quote within 24 hours.
