CAP ALUM 56UF 20% 50V RADIAL

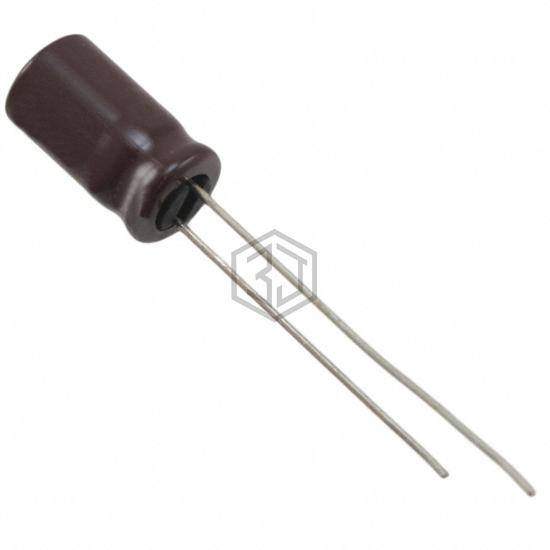

KY50VB56RM6X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 118 mA @ 120 Hz |
| Ripple Current @ High Frequency | 295 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY50VB56RM6X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH56MEFCT16.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 95% | View |
| UPM1H560MED | Nichicon | CAP ALUM 56UF 20% 50V RADIAL | 81% | View |
| 860040472002 | Würth Elektronik | CAP ALUM 56UF 20% 25V RADIAL | 63% | View |
| EEU-FC1C560H | Panasonic Electronic Components | CAP ALUM 56UF 20% 16V RADIAL | 58% | View |
| 450QXW56MEFR12.5X31.5 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 56% | View |
| UBX2D560MHL | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 52% | View |
Submit your RFQ for KY50VB56RM6X11LL and get a quote within 24 hours.
