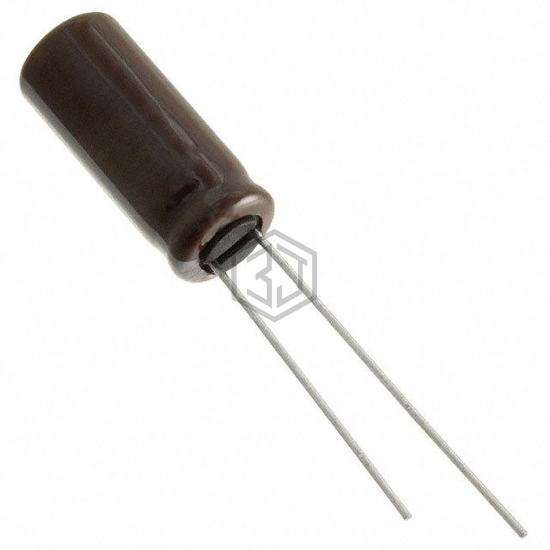

CAP ALUM 180UF 20% 50V RADIAL
KY50VB181M8X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 180UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,717
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 364 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 100 kHz |
| Impedance | 91 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY50VB181M8X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE500ELL181MH20D | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 80% | View |
| EKZN630ELL181MJ16S | United Chemi-Con | CAP ALUM 180UF 20% 63V RADIAL | 78% | View |
| 35ZT180MTA8X20 | Rubycon | CAP ALUM 180UF 20% 35V RADIAL | 74% | View |
| 63TXW180MEFC8X25 | Rubycon | CAP ALUM 180UF 20% 63V RADIAL | 69% | View |
| 16YXG180MEFCTA6.3X11 | Rubycon | CAP ALUM 180UF 20% 16V RADIAL | 56% | View |
| ELXG201VSN181MP25S | United Chemi-Con | CAP ALUM 180UF 20% 200V SNAP | 56% | View |
Submit your RFQ for KY50VB181M8X20LL and get a quote within 24 hours.
