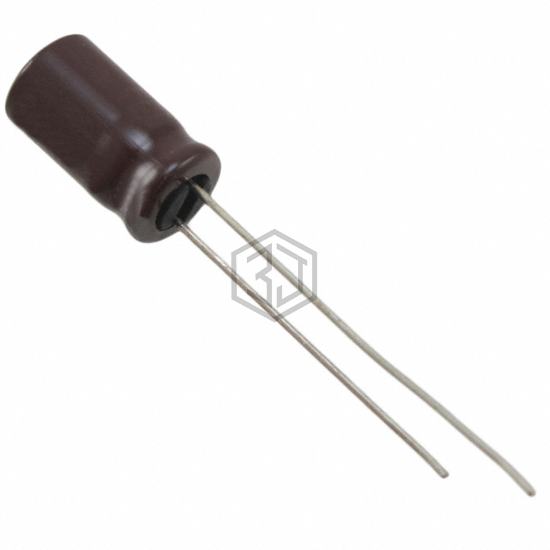

CAP ALUM 56UF 20% 35V RADIAL
KY35VB56RM6X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 56UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,821
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 136 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY35VB56RM6X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35RX3056MT15X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 100% | View |
| 860080573004 | Würth Elektronik | CAP ALUM 56UF 20% 35V RADIAL | 96% | View |
| 35YXH56MEFCTA6.3X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 95% | View |
| 35ZL56MEFCTA6.3X11 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 86% | View |
| 35ML56MEFC8X7 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 75% | View |
| 860160472008 | Würth Elektronik | CAP ALUM 56UF 20% 25V RADIAL | 72% | View |
Submit your RFQ for KY35VB56RM6X11LL and get a quote within 24 hours.
