CAP ALUM 2200UF 20% 35V RADIAL

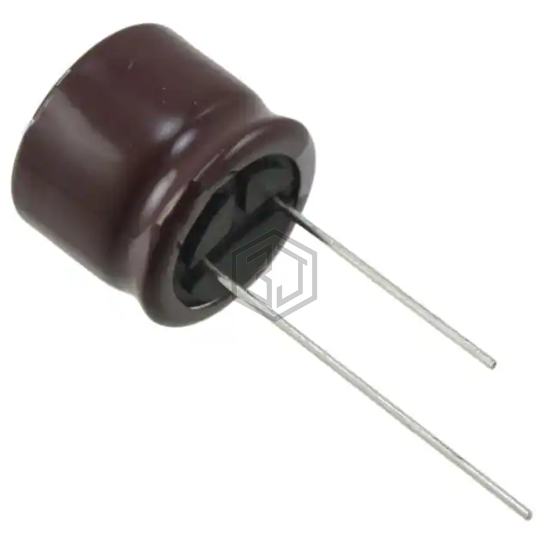

KY35VB222M18X25LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,948
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.355 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.14 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK222M1HBK-1836S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 84% | View |
| 50KXF2200MEFC30X20 | Rubycon | CAP ALUM 2200UF 20% 50V SNAP | 67% | View |
| 228KXM025MQV | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 25V RADIAL | 66% | View |
| UBW1C222MHD1TN | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 64% | View |
| UBT1C222MHD | Nichicon | CAP ALUM 2200UF 20% 16V RADIAL | 64% | View |
| ELXY160EMC222MK30S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for KY35VB222M18X25LL and get a quote within 24 hours.
