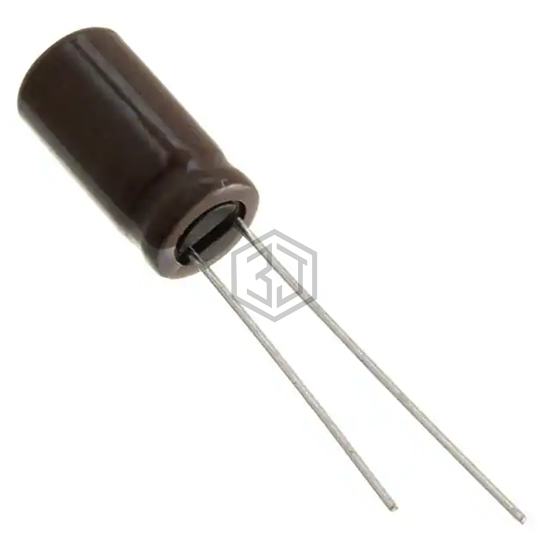

CAP ALUM 330UF 20% 25V RADIAL
KY25VB331M8X15LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,375
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
| Impedance | 87 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY25VB331M8X15LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25ZL330MT810X12.5 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 83% | View |
| EEU-TA1V331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V RADIAL | 80% | View |
| UHD1C331MPD1AA | Nichicon | CAP ALUM 16V POLAR | 78% | View |
| 337KBM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 75% | View |
| ELXV500ELL331MJ30S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 60% | View |
| 50YXG330MEFC10X23 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for KY25VB331M8X15LL and get a quote within 24 hours.
