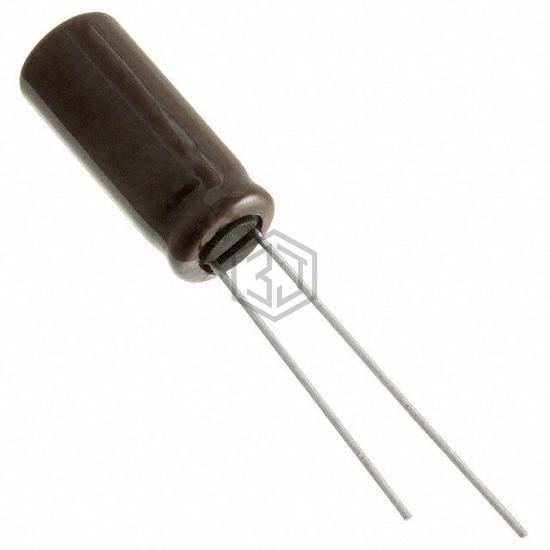

CAP ALUM 680UF 20% 16V RADIAL
KY16VB681M8X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 630 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY16VB681M8X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ160ELL681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 100% | View |
| EKZE160ETD681MH20D | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 86% | View |
| 10ZLG680MEFCTA8X16 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 71% | View |
| MAL226051681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 61% | View |
| 687LMB100M2BC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 100V SNAP | 60% | View |
| MAL211916681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 25V AXIAL | 58% | View |
Submit your RFQ for KY16VB681M8X20LL and get a quote within 24 hours.
