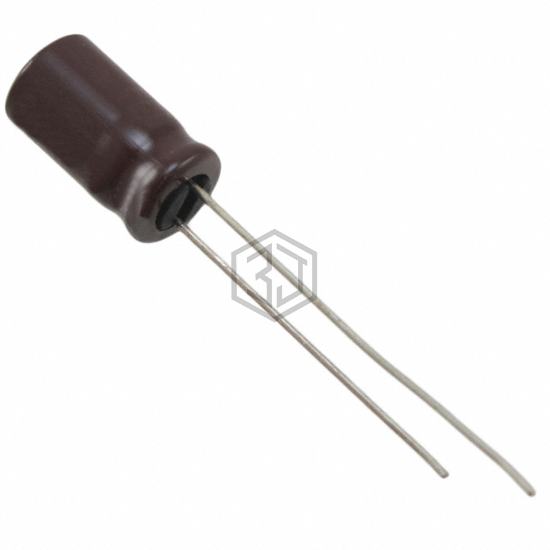

CAP ALUM 120UF 20% 16V RADIAL
KY16VB121M6X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 120UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,693
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 136 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | 22 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KY16VB121M6X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860040373003 | Würth Elektronik | CAP ALUM 120UF 20% 16V RADIAL | 73% | View |
| 10ZL120MEFCTZ6.3X7 | Rubycon | CAP ALUM 120UF 20% 10V RADIAL | 69% | View |
| ELXY350EC3121MH12D | United Chemi-Con | CAP ALUM 120UF 20% 35V RADIAL | 63% | View |
| MLSH121M250JK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 250V RADIAL | 56% | View |
| 6.3ML120MEFCTZ6.3X5 | Rubycon | CAP ALUM 120UF 20% 6.3V RADIAL | 54% | View |
| 10ML120MEFC6.3X7 | Rubycon | CAP ALUM 120UF 20% 10V RADIAL | 53% | View |
