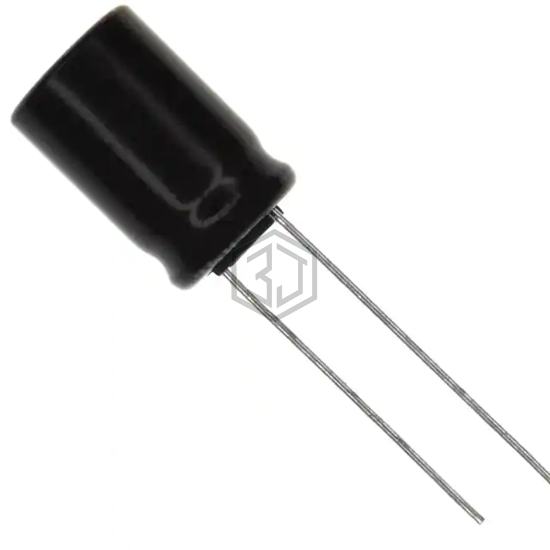

CAP ALUM 6.8UF 20% 450V RADIAL
KXG450VB6R8M10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6.8UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,688
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 275 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG450VB6R8M10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2G6R8MPD1TD | Nichicon | CAP ALUM 6.8UF 20% 400V RADIAL | 90% | View |
| LL2H6R8MP51016E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 90% | View |
| 350BXC6R8M10X16 | Rubycon | CAP ALUM 6.8UF 20% 350V RADIAL | 85% | View |
| MAL215236688E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 400V RADIAL | 78% | View |
| PF2W6R8MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| B43866C4685M | EPCOS - TDK Electronics | CAP ALUM 6.8UF 20% 350V RADIAL | 57% | View |
Submit your RFQ for KXG450VB6R8M10X20LL and get a quote within 24 hours.
