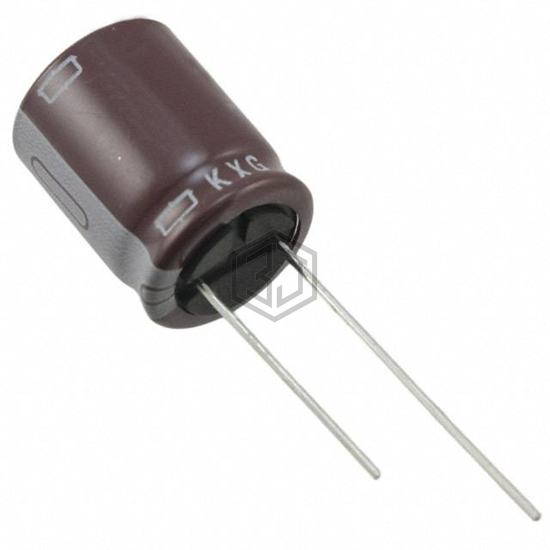

CAP ALUM 33UF 20% 350V RADIAL
KXG350VB33RM16X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,566
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG350VB33RM16X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 91% | View |
| EKMG401ELL330MK25S | United Chemi-Con | CAP ALUM 33UF 20% 400V RADIAL | 91% | View |
| 450BXW33MEFR14.5X25 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 87% | View |
| 450BXW33MEFR12.5X30 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 87% | View |
| UCY2H330MHD3 | Nichicon | CAP ALUM 33UF 20% 500V RADIAL | 82% | View |
| UAQ2G330MHD3TN | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 56% | View |
