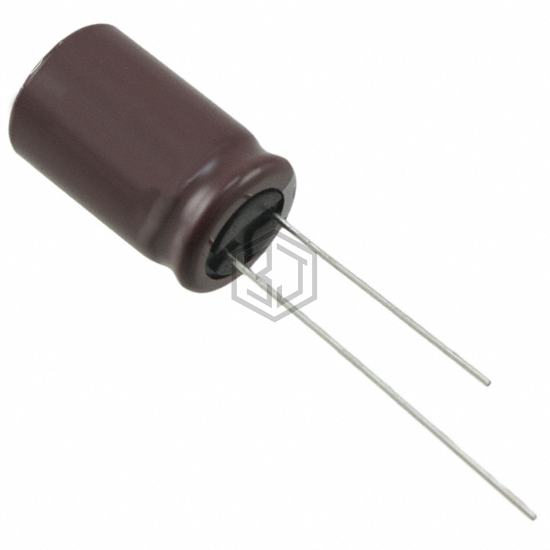

CAP ALUM 22UF 20% 350V RADIAL
KXG350VB22RM12X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,048
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 650 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG350VB22RM12X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214262295E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 93% | View |
| EKXJ421ELL220MK20S | United Chemi-Con | CAP ALUM 22UF 20% 420V RADIAL | 90% | View |
| 450TXW22MEFR10X35 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL TH | 84% | View |
| MAL215236229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 77% | View |
| UCS2D220MPD1TD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 76% | View |
| EEU-TA1J220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 55% | View |
Submit your RFQ for KXG350VB22RM12X20LL and get a quote within 24 hours.
