CAP ALUM 10UF 20% 250V RADIAL

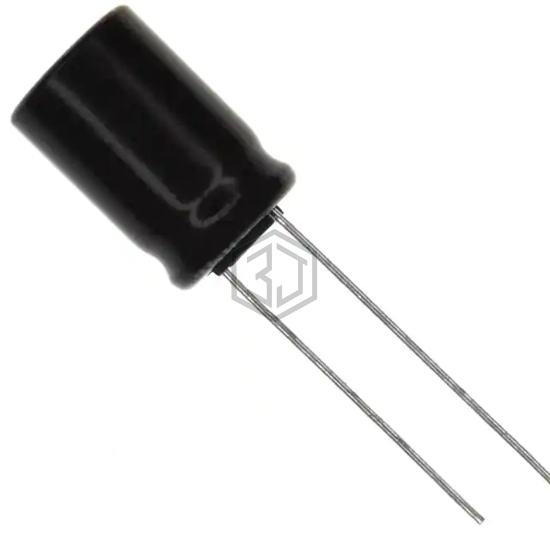

KXG250VB10RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 3,157
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG250VB10RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXJ10MT16.3X11 | Rubycon | CAP ALUM 10UF 20% 100V RADIAL | 67% | View |
| 106KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 50V RADIAL | 61% | View |
| MAL214251095E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 350V RADIAL | 60% | View |
| EEU-TA1H100B | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V RADIAL | 59% | View |
| 50ZL10MEFCTZ5X7 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 56% | View |
| UBT1H100MPD1TD | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for KXG250VB10RM10X20LL and get a quote within 24 hours.
