CAP ALUM 22UF 20% 200V RADIAL

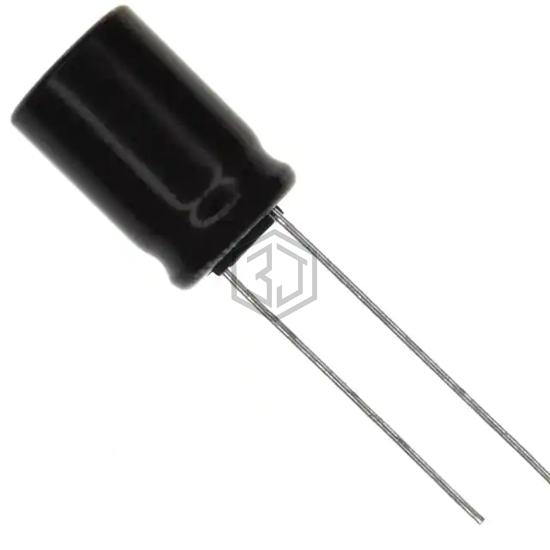

KXG200VB22RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,577
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG200VB22RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214262229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 200V RADIAL | 89% | View |
| UCY2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 88% | View |
| 672D226F250EN4D | Vishay Sprague | CAP ALUM 22UF 250V RADIAL | 86% | View |
| EKXJ351ETD220MJ20S | United Chemi-Con | CAP ALUM 22UF 20% 350V RADIAL | 83% | View |
| EKXJ451ELL220MJ35S | United Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL | 68% | View |
| UCY2H220MHD3TN | Nichicon | CAP ALUM 22UF 20% 500V RADIAL | 68% | View |
