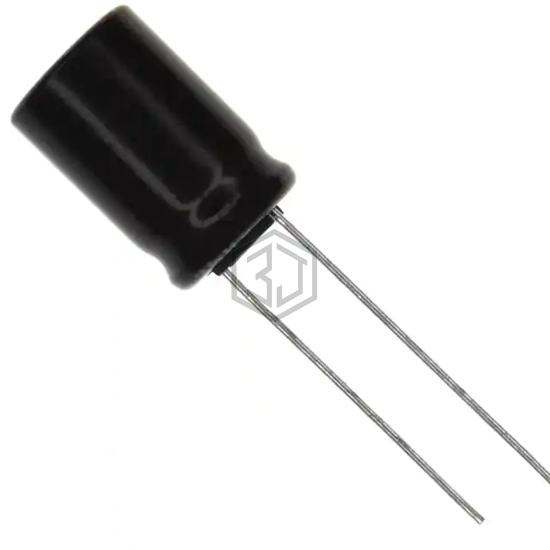

CAP ALUM 22UF 20% 160V RADIAL
KXG160VB22RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,811
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KXG160VB22RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA22MEFC12.5X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 69% | View |
| URZ2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 68% | View |
| VHT22M16 | NTE Electronics, Inc | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| EGXE350ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 35V RADIAL | 56% | View |
| 100YXM22MEFRT78X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 56% | View |
| UBW1H220MPD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for KXG160VB22RM10X20LL and get a quote within 24 hours.
