CAP ALUM 470UF 20% 450V SNAP

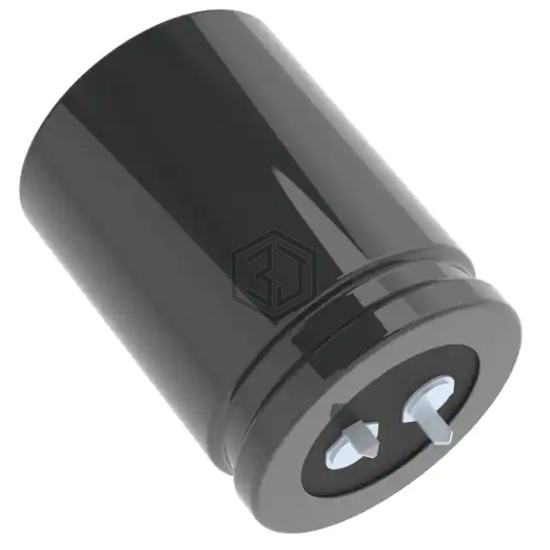

KMQ450VS471M35X45T2 is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,807
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 705mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.4882 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
KMQ450VS471M35X45T2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH451VND471MA50M | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 99% | View |
| 400MXG470MEFCSN35X35 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 95% | View |
| B43508A5477M062 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| B43504B9477M62 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 400V SNAP | 92% | View |
| LGM2W471MELC30 | Nichicon | CAP ALUM 470UF 20% 450V SNAP | 82% | View |
| MAL215923471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 250V SNAP | 72% | View |
Submit your RFQ for KMQ450VS471M35X45T2 and get a quote within 24 hours.
