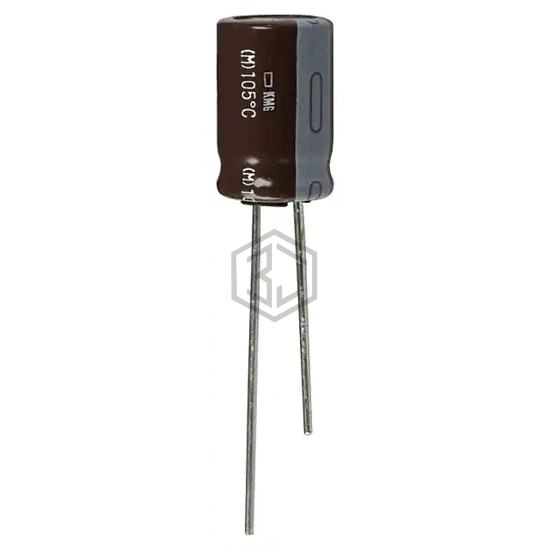

CAP ALUM 220UF 20% 63V RADIAL
KMG63VB221M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,017
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 753mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 502.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG63VB221M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214661221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 81% | View |
| MAL214658221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 78% | View |
| ELXV350ELL221MH20D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 70% | View |
| 678D227M050DM3D | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 62% | View |
| ELXZ160ELL221MF15D | United Chemi-Con | CAP ALUM 220UF 20% 16V RADIAL | 61% | View |
| ELXV500ETD221MJ25S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for KMG63VB221M10X16LL and get a quote within 24 hours.
