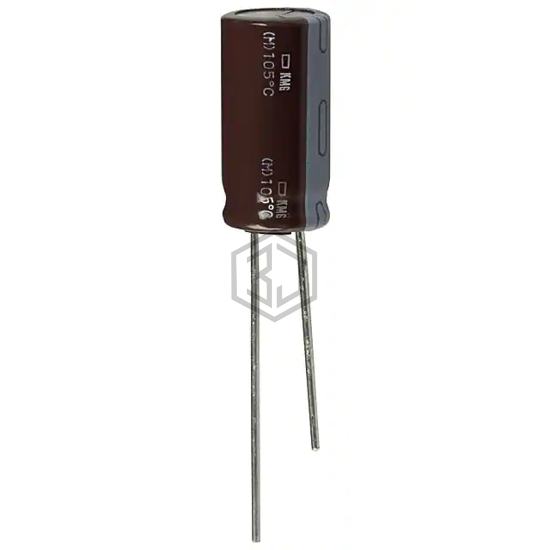

CAP ALUM 2200UF 20% 6.3V RADIAL
KMG6.3VB222M10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,549
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 271mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 710 mA @ 120 Hz |
| Ripple Current @ High Frequency | 766.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG6.3VB222M10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV6R3ELL222MJ30S | United Chemi-Con | CAP ALUM 2200UF 20% 6.3V RADIAL | 76% | View |
| EEU-FK0J222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 6.3V RAD TH | 72% | View |
| EKRG350ELL222MM20S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 58% | View |
| MAL213696225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 56% | View |
| SEK222M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 35V RADIAL | 56% | View |
| ELXZ100ELL222MK20S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 54% | View |
Submit your RFQ for KMG6.3VB222M10X20LL and get a quote within 24 hours.
