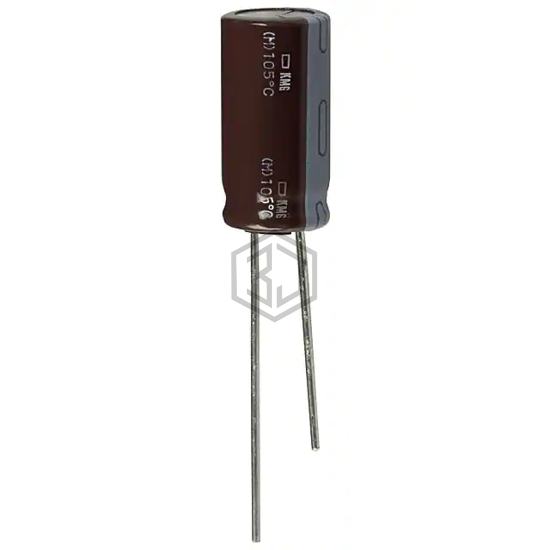

CAP ALUM 4.7UF 20% 450V RADIAL
KMG450VB4R7M10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4.7UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,006
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 84.638Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 72 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG450VB4R7M10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2V4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 350V RADIAL | 86% | View |
| 450BXC4R7M10X16 | Rubycon | CAP ALUM 4.7UF 20% 450V RADIAL | 76% | View |
| ULD2G4R7MPD1TD | Nichicon | CAP ALUM 4.7UF 20% 400V RADIAL | 74% | View |
| UKL1E4R7KDDANATA | Nichicon | CAP ALUM 4.7UF 20% 25V RADIAL | 71% | View |
| MAL213829478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 100V AXIAL | 71% | View |
| ESW475M025AC3AA | KEMET | CAP ALUM 4.7UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for KMG450VB4R7M10X20LL and get a quote within 24 hours.
