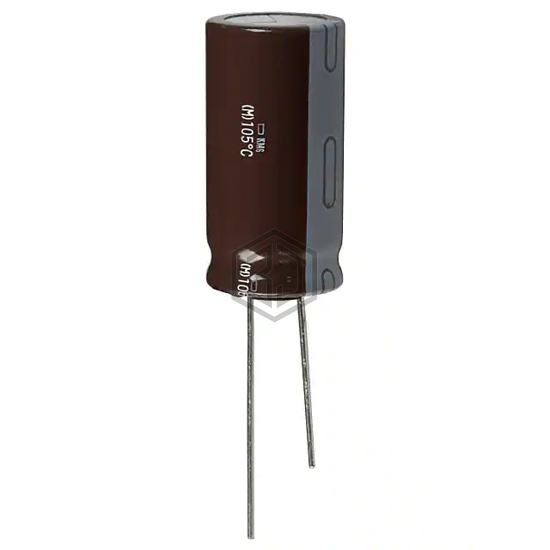

CAP ALUM 47UF 20% 400V RADIAL
KMG400VB47RM16X31LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 8.464Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 375 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG400VB47RM16X31LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215267479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 450V RADIAL | 94% | View |
| UBX2D470MHL1TO | Nichicon | CAP ALUM 47UF 20% 200V RADIAL | 79% | View |
| UH063M470G13PE50S00A | Suscon | CAP ALUM 47UF 20% 63V RADIAL TH | 75% | View |
| UCY2G470MHD6 | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 59% | View |
| 63YXF47MEFCTA8X11.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 52% | View |
| MAL211661479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 50V RADIAL | 51% | View |
