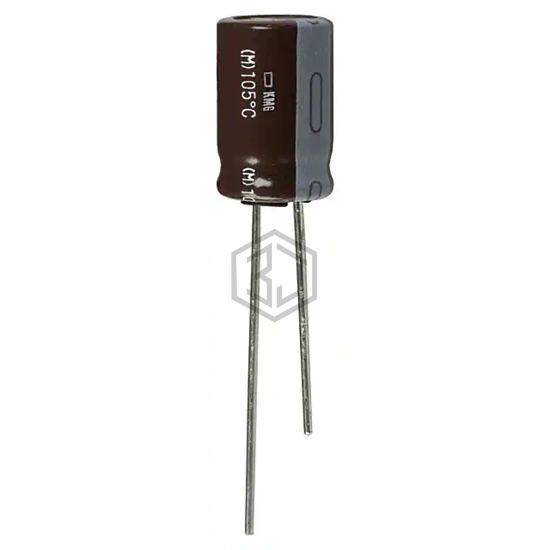

CAP ALUM 4.7UF 20% 350V RADIAL
KMG350VB4R7M10X16LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4.7UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 4,013
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 84.638Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG350VB4R7M10X16LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2V4R7MPH | Nichicon | CAP ALUM 4.7UF 20% 350V RADIAL | 96% | View |
| 400PX4.7MEFC8X11.5 | Rubycon | CAP ALUM 4.7UF 20% 400V RADIAL | 91% | View |
| UAS2G4R7MPD | Nichicon | CAP ALUM 4.7UF 20% 400V RADIAL | 90% | View |
| 200LEX4.7MEFC6.3X11 | Rubycon | CAP ALUM 4.7UF 20% 200V RADIAL | 80% | View |
| MAL214252478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 200V RADIAL | 74% | View |
| ELE-500ELL4R7ME11D | United Chemi-Con | CAP ALUM 4.7UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for KMG350VB4R7M10X16LL and get a quote within 24 hours.
