CAP ALUM 10UF 20% 350V RADIAL

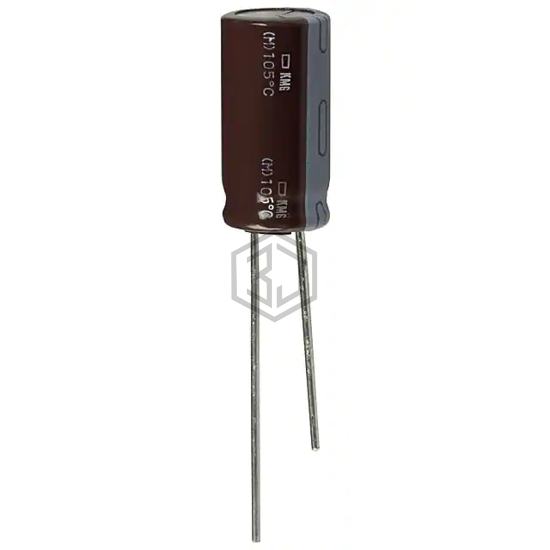

KMG350VB10RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 2,252
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 39.78Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 144 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG350VB10RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBT2D100MPD8TD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 82% | View |
| 106CKE063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 63V RADIAL | 71% | View |
| EEU-FC2A100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V RADIAL | 69% | View |
| 511D106M100BB4I | Vishay Sprague | CAP ALUM 10UF 20% 100V RADIAL | 68% | View |
| 511D106M100BB4IE3 | Vishay Sprague | CAP ALUM 10UF 20% 100V RADIAL | 67% | View |
| 860240672002 | Würth Elektronik | CAP ALUM 10UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for KMG350VB10RM10X20LL and get a quote within 24 hours.
