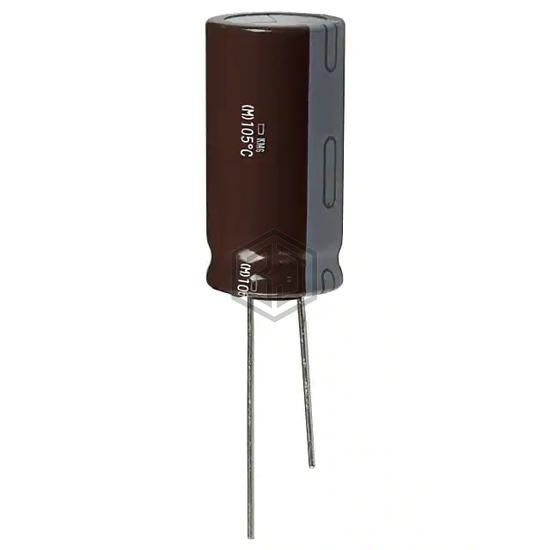

CAP ALUM 4700UF 20% 25V RADIAL
KMG25VB472M16X31LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,092
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 78mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.71 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8468 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG25VB472M16X31LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1E472MHH | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 99% | View |
| UVZ1E472MHD1AA | Nichicon | CAP ALUM 25V POLAR | 99% | View |
| RXJ472M1EBK-1840S | Surge | CAP ALUM 25V POLAR | 82% | View |
| RXK472M1EBK-1840S | Surge | CAP ALUM 25V POLAR | 77% | View |
| UPW1C472MHH6 | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 70% | View |
| EEU-FK1C472L | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RAD TH | 67% | View |
Submit your RFQ for KMG25VB472M16X31LL and get a quote within 24 hours.
