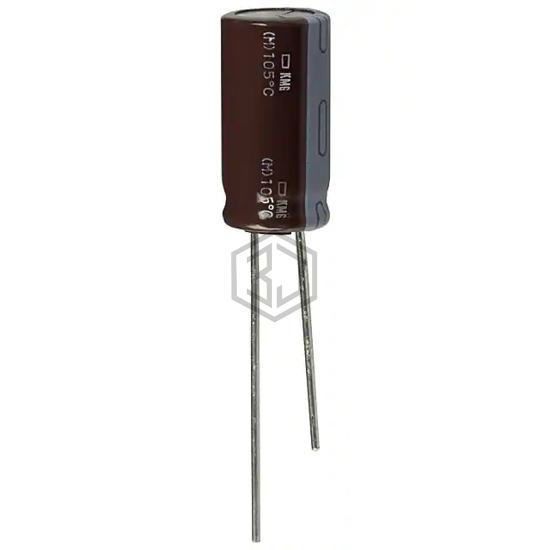

CAP ALUM 22UF 20% 200V RADIAL
KMG200VB22RM10X20LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,015
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 15.068Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 216 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG200VB22RM10X20LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA22MEFCG412.5X16 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 92% | View |
| UPW2F220MHD1TO | Nichicon | CAP ALUM 22UF 20% 315V RADIAL | 83% | View |
| 100YXM22MEFCT78X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 76% | View |
| 63YXJ22M5X11 | Rubycon | CAP ALUM 22UF 20% 63V RADIAL | 68% | View |
| PF1H220MP20511R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 59% | View |
| MAL211839229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V AXIAL | 54% | View |
Submit your RFQ for KMG200VB22RM10X20LL and get a quote within 24 hours.
