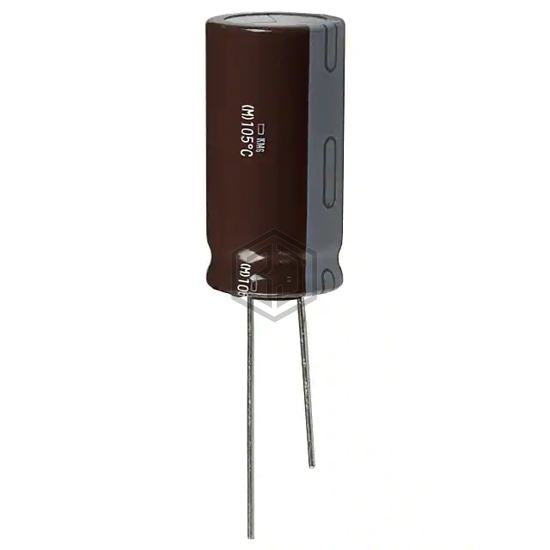

CAP ALUM 220UF 20% 160V RADIAL
KMG160VB221M16X31LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 220UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,377
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 1.507Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 810 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG160VB221M16X31LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505E2227M80 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 200V SNAP | 72% | View |
| B43508E2227M80 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 250V SNAP | 65% | View |
| 200TXW220MEFR12.5X45 | Rubycon | CAP ALUM 220UF 20% 200V RAD TH | 61% | View |
| 860080374009 | Würth Elektronik | CAP ALUM 220UF 20% 16V RADIAL | 60% | View |
| UBW1C221MPD1TD | Nichicon | CAP ALUM 220UF 20% 16V RADIAL | 59% | View |
| UBX1V221MHL | Nichicon | CAP ALUM 220UF 20% 35V RADIAL | 58% | View |
Submit your RFQ for KMG160VB221M16X31LL and get a quote within 24 hours.
