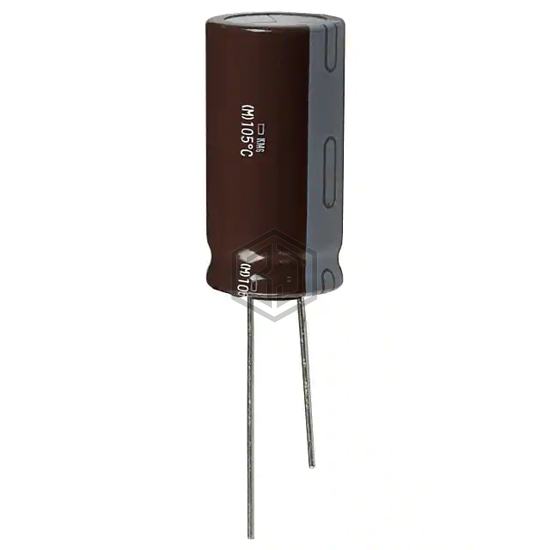

CAP ALUM 470UF 20% 100V RADIAL
KMG100VB471M16X31LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,825
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 282mOhm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 715 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0725 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG100VB471M16X31LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS1V471MPD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 77% | View |
| ELXY630ELL471ML25S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 77% | View |
| UBW1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 72% | View |
| MAL211826471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V AXIAL | 59% | View |
| EEU-HD1V471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 58% | View |
| 25PX470MEFC10X12.5 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for KMG100VB471M16X31LL and get a quote within 24 hours.
