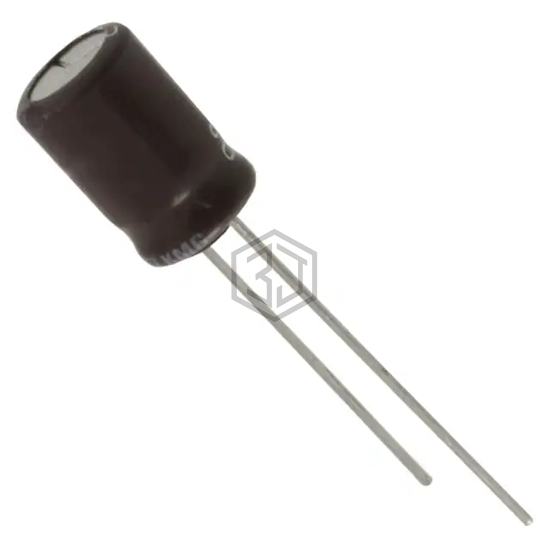

CAP ALUM 22UF 20% 100V RADIAL
KMG100VB22RM8X11LL is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,915
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 6.027Ohm @ 120Hz |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 167.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
KMG100VB22RM8X11LL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG101ETC220MHB5D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 100% | View |
| MAL211621229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM RADIAL | 100% | View |
| URZ2A220MPD1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 97% | View |
| EKMG630ELL220ME11D | United Chemi-Con | CAP ALUM 22UF 20% 63V RADIAL | 73% | View |
| MAL212326229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 25V AXIAL | 70% | View |
| EY1H220MP20511ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 64% | View |
Submit your RFQ for KMG100VB22RM8X11LL and get a quote within 24 hours.
