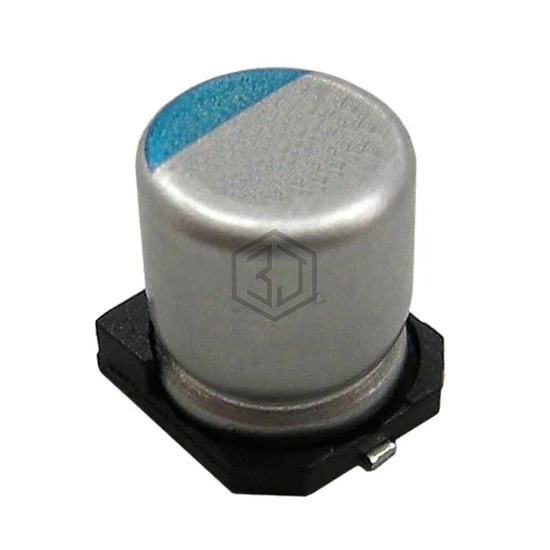

CAP ALUM POLY HYB 56UF 50V SMD
HHXD500ARA560MJA0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 56UF 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for HHXD500ARA560MJA0G and get a quote within 24 hours.
