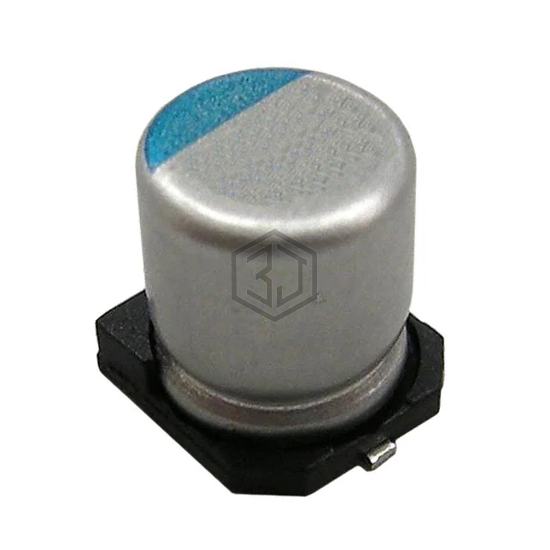

CAP ALUM POLY HYB 150UF 35V SMD
HHXD350ARA151MHA0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 150UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXD350GRA151MJA0G | Chemi-Con | CAP ALUMHYB 150UF 20% 35V SMD | 96% | View |
| HHXC350GRA151MJA0G | Chemi-Con | CAP ALUMHYB 150UF 20% 35V SMD | 93% | View |
| EEH-ZA1V151V | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 35V SMD | 90% | View |
| HHXC350ARA151MHA0G | United Chemi-Con | CAP ALUM POLY 150UF 20% 35V SMD | 88% | View |
| HHXD160ARA151MF80G | United Chemi-Con | CAP ALUM HYBRD 150UF 20% 16V SMD | 77% | View |
| GYA1C151MCW1GS | Nichicon | CAP ALUM POLY HYB 150UF 16V SMD | 68% | View |
Submit your RFQ for HHXD350ARA151MHA0G and get a quote within 24 hours.
