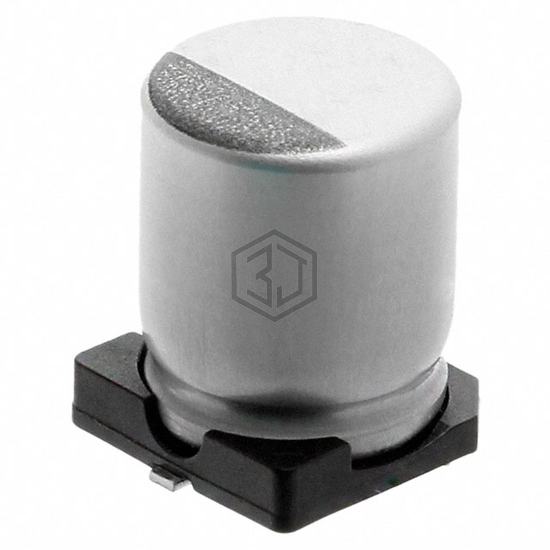

CAP ALUM POLY HYB 22UF 80V SMD
HHXB800ARA220MHA0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 22UF 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 4,820
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
HHXB800ARA220MHA0G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HBV220M1JTR-0608S | Surge | CAP ALUM HYBRID 22UF 20% 63V SMD | 88% | View |
| AHA1012180M080R | KYOCERA AVX | CAP ALUM POLY HYB 18UF 80V SMD | 86% | View |
| AHA1010150M080R | KYOCERA AVX | CAP ALUM POLY HYB 15UF 80V SMD | 80% | View |
| HHXC630ARA220MF80G | United Chemi-Con | CAP ALUM POLY 22UF 20% 63V SMD | 71% | View |
| HHXC630GRA220MF80G | Chemi-Con | CAP ALUM HYBRID 22UF 20% 63V SMD | 71% | View |
| AHA0608150M050R | KYOCERA AVX | CAP ALUM POLY HYB 15UF 50V SMD | 52% | View |
Submit your RFQ for HHXB800ARA220MHA0G and get a quote within 24 hours.
