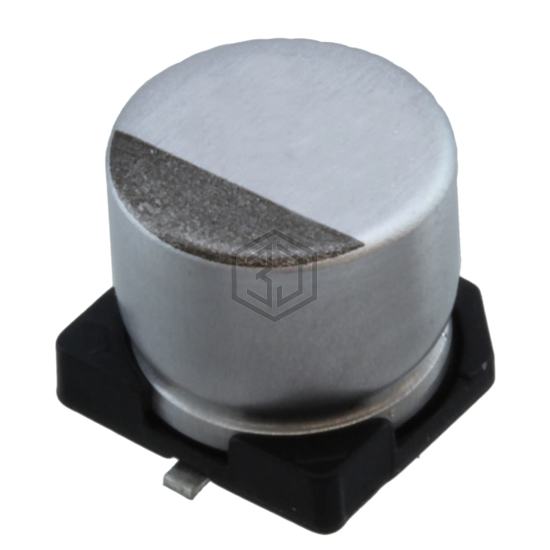

CAP ALUM POLY HYB 47UF 35V SMD
HHXB350ARA470MF61G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 47UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,527
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Hybrid |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
HHXB350ARA470MF61G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZA1V470P | Panasonic Electronic Components | CAP ALUM POLY HYB 47UF 35V SMD | 100% | View |
| RAHV1470M1GDC8002 | Taiyo Yuden | CAP ALUM HYBRID 47UF 20% 35V SMD | 100% | View |
| EEH-ZC1V470P | Panasonic Electronic Components | CAP ALUM POLY HYB 47UF 35V SMD | 88% | View |
| RAHTK470M1GDC8002E | Taiyo Yuden | CAP ALUM HYBRID 47UF 20% 35V SMD | 88% | View |
| HHXD160ARA470ME61G | United Chemi-Con | CAP ALUM HYBRID 47UF 20% 16V SMD | 59% | View |
| EEH-ZT1J470P | Panasonic Electronic Components | CAP ALUM POLY HYB 47UF 63V SMD | 56% | View |
Submit your RFQ for HHXB350ARA470MF61G and get a quote within 24 hours.
