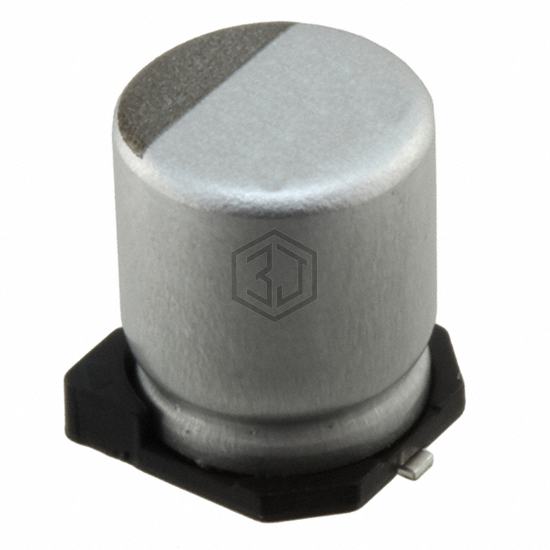

CAP ALUM POLY HYB 22UF 63V SMD
HHXA630ARA220MF80G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 22UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 9,316
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 80mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 900 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
HHXA630ARA220MF80G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXC630GRA220MHA0G | Chemi-Con | CAP ALUM HYBRID 22UF 20% 63V SMD | 93% | View |
| AHC0609220M050R | KYOCERA AVX | CAP ALUM POLY HYB 22UF 50V SMD | 90% | View |
| HHXC500ARA220MF61G | United Chemi-Con | CAP ALUM POLY 22UF 20% 50V SMD | 85% | View |
| RAHVK220M1UDC8002E | Taiyo Yuden | CAP ALUM HYBRID 22UF 20% 50V SMD | 85% | View |
| HHXC350ARA220ME61G | United Chemi-Con | CAP ALUM POLY 22UF 20% 35V SMD | 60% | View |
| MAL218397001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 22UF 35V SMD | 60% | View |
Submit your RFQ for HHXA630ARA220MF80G and get a quote within 24 hours.
