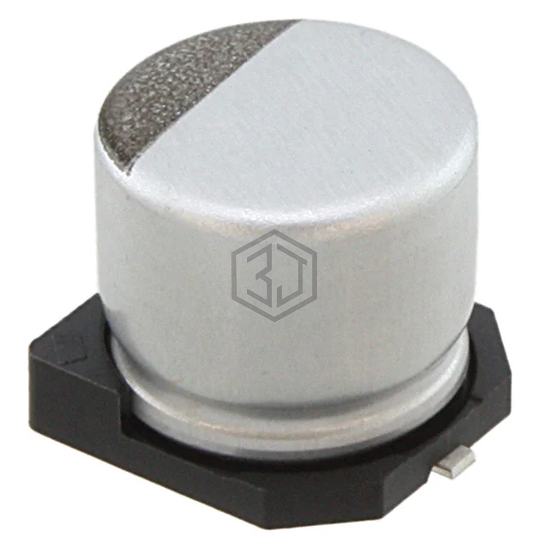

CAP ALUM POLY HYB 82UF 16V SMD
HHXA160ARA820MF61G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY HYB 82UF 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,638
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Hybrid |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 950 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
HHXA160ARA820MF61G is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXC160GRA820MF61G | Chemi-Con | CAP ALUM HYBRID 82UF 20% 16V SMD | 100% | View |
| HBW820M1CTR-0606S | Surge | CAP ALUM HYBRID 82UF 20% 16V SMD | 98% | View |
| GYC1C820MCQ1GS | Nichicon | CAP ALUM HYBRID 82UF 20% 16V SMD | 85% | View |
| HHXE160GRA820MF61G | Chemi-Con | CAP ALUM HYBRID 82UF 20% 16V SMD | 81% | View |
| EEH-ZK1E820V | Panasonic Electronic Components | CAP ALUM POLY HYB 82UF 25V SMD | 71% | View |
| HBO820M1ETR-0606S | Surge | CAP ALUM HYBRID 82UF 20% 25V SMD | 71% | View |
Submit your RFQ for HHXA160ARA820MF61G and get a quote within 24 hours.
