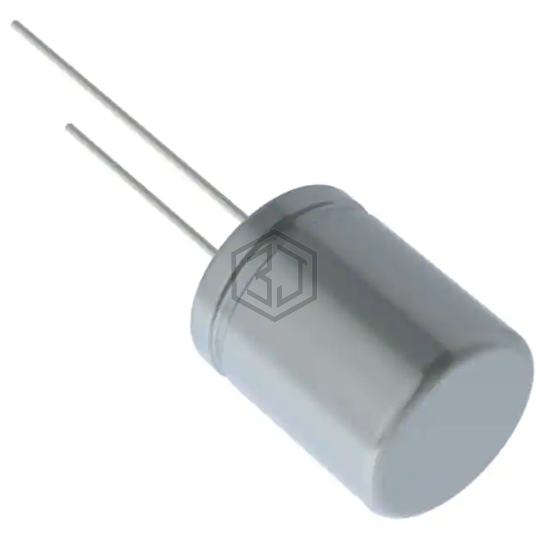

CAP ALUM HYBRID 270UF 20% 35V TH
HHSE350ELL271MJC5S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM HYBRID 270UF 20% 35V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,639
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 17mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 481 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35PZS270M10X9 | Rubycon | CAP ALUM POLY HYB 270UF 35V T/H | 84% | View |
| HHSE250ELL331MJC5S | United Chemi-Con | CAP ALUM HYBRID 330UF 20% 25V TH | 81% | View |
| 35PZH330M10X11 | Rubycon | CAP ALUM POLY HYB 330UF 35V T/H | 69% | View |
| 50PZH270M10X20 | Rubycon | CAP ALUM POLY HYB 270UF 50V T/H | 66% | View |
| 25PZS330M10X9 | Rubycon | CAP ALUM POLY HYB 330UF 25V T/H | 66% | View |
| 25PZH330M10X9 | Rubycon | CAP ALUM POLY HYB 330UF 25V T/H | 58% | View |
