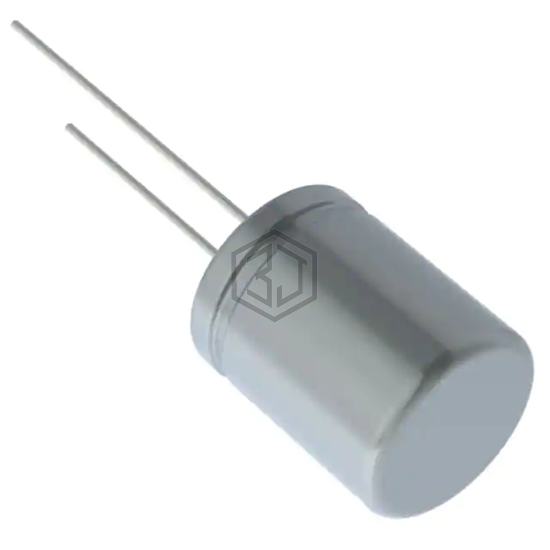

CAP ALUM HYBRID 120UF 20% 50V TH
HHSC500ELL121MJC5S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM HYBRID 120UF 20% 50V TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 19mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for HHSC500ELL121MJC5S and get a quote within 24 hours.
