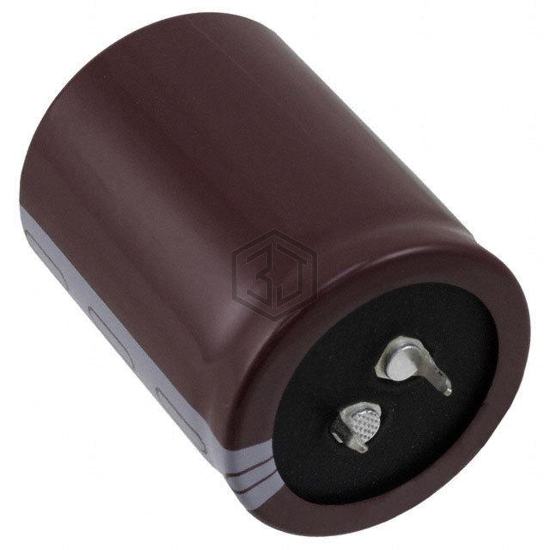

CAP ALUM 1800UF 20% 200V SNAP
ETXH201VSN182MB50S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1800UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.86 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM201VNN182MA45U | United Chemi-Con | CAP ALUM 1800UF 20% 200V SNAP | 97% | View |
| EKMH201VNN182MA50U | United Chemi-Con | CAP ALUM 1800UF 20% 200V SNAP | 97% | View |
| B43508E2188M87 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 250V SNAP | 85% | View |
| LGG2E182MELC45 | Nichicon | CAP ALUM 1800UF 20% 250V SNAP | 81% | View |
| UBY1H182MHL6 | Nichicon | CAP ALUM 1800UF 20% 50V RADIAL | 70% | View |
| EKZE630ELL182MM40S | United Chemi-Con | CAP ALUM 1800UF 20% 63V RADIAL | 61% | View |
Submit your RFQ for ETXH201VSN182MB50S and get a quote within 24 hours.
