CAP ALUM 560UF 20% 315V SNAP

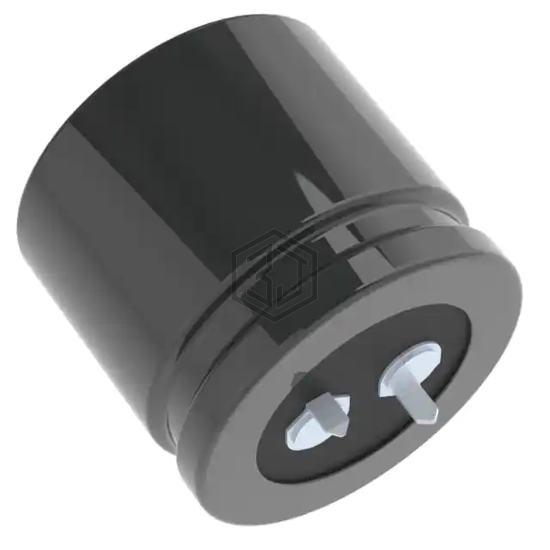

ESMM3B1VSN561MA30S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 315V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Snap-In.
In Stock: 7,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8467 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43540G2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 88% | View |
| EKMM401VSN561MR50S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 85% | View |
| 567LBB200M2BF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
| B43508A9567M7 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 80% | View |
| EKMZ421VSN561MQ55S | United Chemi-Con | CAP ALUM 560UF 20% 420V SNAP | 79% | View |
| B43540B2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 77% | View |
Submit your RFQ for ESMM3B1VSN561MA30S and get a quote within 24 hours.
