CAP ALUM 2200UF 20% 80V SNAP

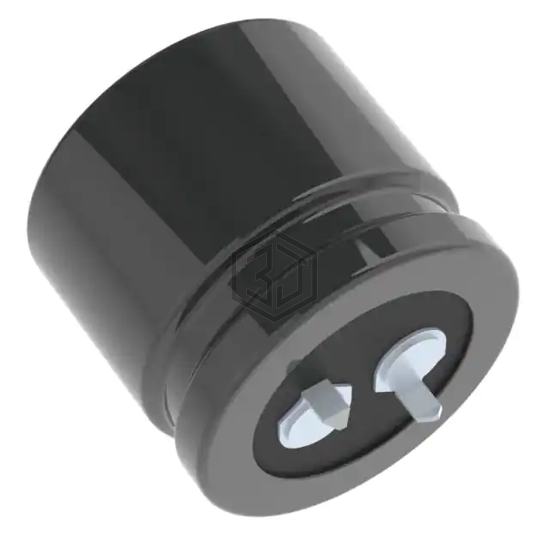

ESMH800VSN222MR25U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,866
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 2.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.988 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100MXC2200MEFC25X40 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 92% | View |
| 63ZLJ2200M16X40 | Rubycon | CAP ALUM 2200UF 20% 63V RADIAL | 82% | View |
| 63MXC2200MEFC25X25 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 77% | View |
| 757D228M035ER3D | Vishay Sprague | CAP ALUM 2200UF 20% 35V RADIAL | 72% | View |
| LGG2C222MELC35 | Nichicon | CAP ALUM 2200UF 20% 160V SNAP | 66% | View |
| B41856C4228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 16V RADIAL | 63% | View |
Submit your RFQ for ESMH800VSN222MR25U and get a quote within 24 hours.
