CAP ALUM 2200UF 20% 80V SNAP

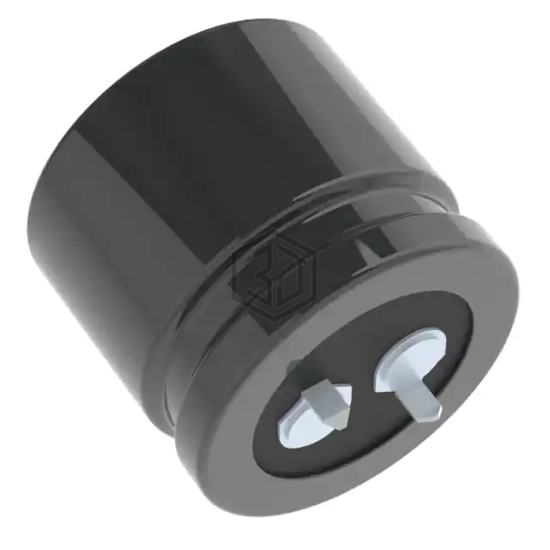

ESMH800VSN222MR25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 8,512
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 113mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.988 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VSN222MR25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100USC2200MEFC22X45 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 83% | View |
| 63MXC2200MEFCSN22X35 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 77% | View |
| ESY228M016AL4AA | KEMET | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| MAL214635222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 58% | View |
| 860240480011 | Würth Elektronik | CAP ALUM 2200UF 20% 25V RADIAL | 56% | View |
| 382LX222M200A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 200V SNAP | 56% | View |
Submit your RFQ for ESMH800VSN222MR25T and get a quote within 24 hours.
