CAP ALUM 10000UF 20% 80V SNAP

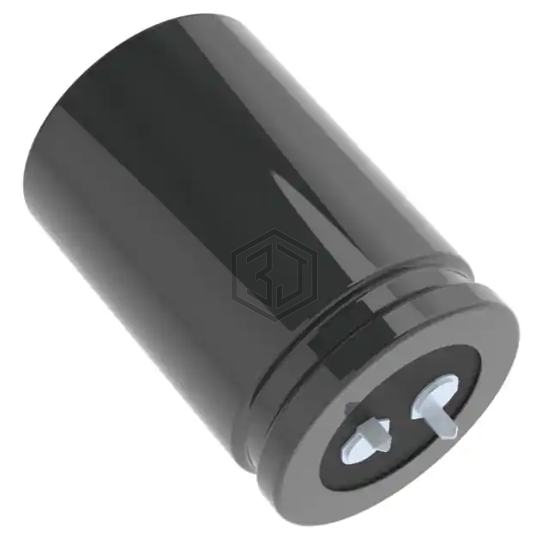

ESMH800VSN103MA50S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 4,867
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.63 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.956 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 861020786030 | Würth Elektronik | CAP ALUM 10000UF 20% 63V SNAP | 85% | View |
| B41231B6109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 50V SNAP | 77% | View |
| LKSN2103MESB | Nichicon | CAP ALUM 10000UF 20% 56V SNAP | 70% | View |
| ESMH500VNN103MA30U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 70% | View |
| ESMH500VSN103MA35U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 69% | View |
| ESMH500VNN103MR45U | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 69% | View |
Submit your RFQ for ESMH800VSN103MA50S and get a quote within 24 hours.
