CAP ALUM 8200UF 20% 80V SNAP

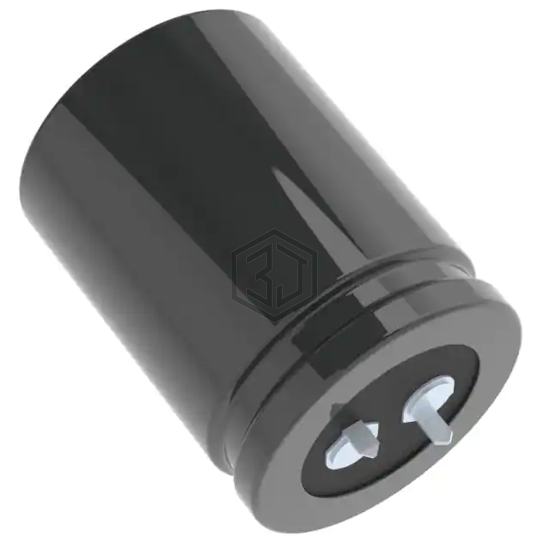

ESMH800VNN822MA45T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 2,669
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.83 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.996 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VNN822MA45T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELH828M080AT5AA | KEMET | CAP ALUM SNAP-IN 85C | 99% | View |
| B41231A6828M000 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 50V SNAP | 78% | View |
| B41605E8818M8 | EPCOS - TDK Electronics | CAP ALUM 8100UF 20% 63V RADIAL | 78% | View |
| ESMH500VNN822MQ45U | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 70% | View |
| ESMH500VNN822MQ50U | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 69% | View |
| LLS1V822MELA | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 51% | View |
