CAP ALUM 6800UF 20% 80V SNAP

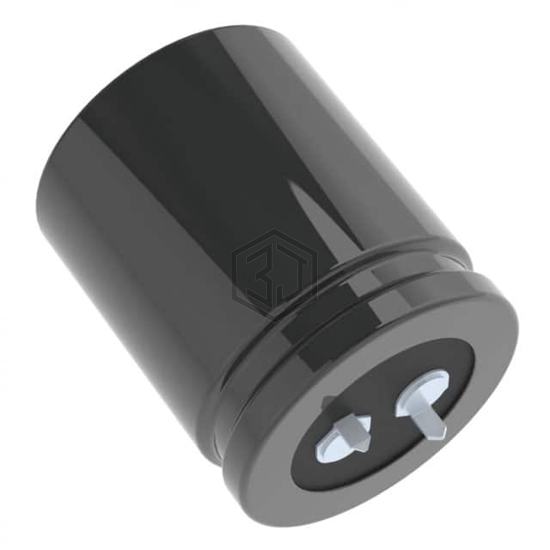

ESMH800VNN682MA40T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 6800UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 5,256
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 37mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.168 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH800VNN682MA40T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH800VSN682MA40S | United Chemi-Con | CAP ALUM 6800UF 20% 80V SNAP | 100% | View |
| ESMH630VSN682MR40S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 84% | View |
| EKMH630VSN682MR50S | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 76% | View |
| 63MXG6800MEFCSN25X45 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 75% | View |
| B41605B688M9 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 55V RADIAL | 70% | View |
| EKMH500VSN682MQ50U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 62% | View |
Submit your RFQ for ESMH800VNN682MA40T and get a quote within 24 hours.
