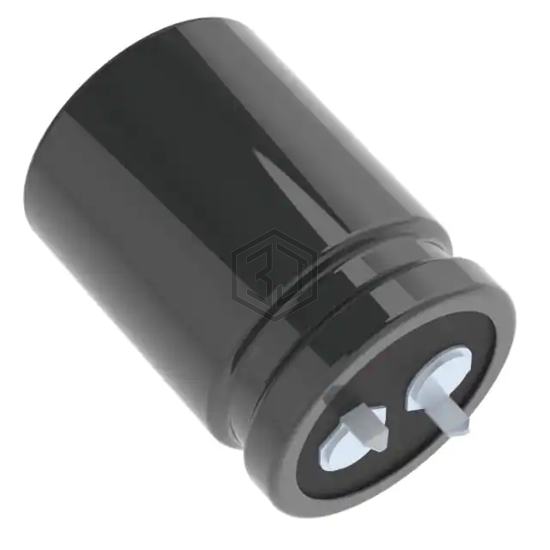

CAP ALUM 33000UF 20% 6.3V SNAP
ESMH6R3VSN333MQ35U is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33000UF 20% 6.3V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - Snap-In.
In Stock: 5,675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 30mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | - |
| Ripple Current @ Low Frequency | 4.02 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.3416 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SMH6.3VN333M22X40T2 | United Chemi-Con | CAP ALUM 33000UF 20% 6.3V SNAP | 99% | View |
| UVR0J333MRA6 | Nichicon | CAP ALUM 33000UF 20% 6.3V RADIAL | 99% | View |
| MALIEYH07AB533B42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 6.3V SNAP | 99% | View |
| MALIEYN07BV533B42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 6.3V SNAP | 90% | View |
| SMG10VB333M25DLL | United Chemi-Con | CAP ALUM 33000UF 20% 10V RADIAL | 80% | View |
| EKMH250VSN333MA50S | United Chemi-Con | CAP ALUM 33000UF 20% 25V SNAP | 65% | View |
Submit your RFQ for ESMH6R3VSN333MQ35U and get a quote within 24 hours.
