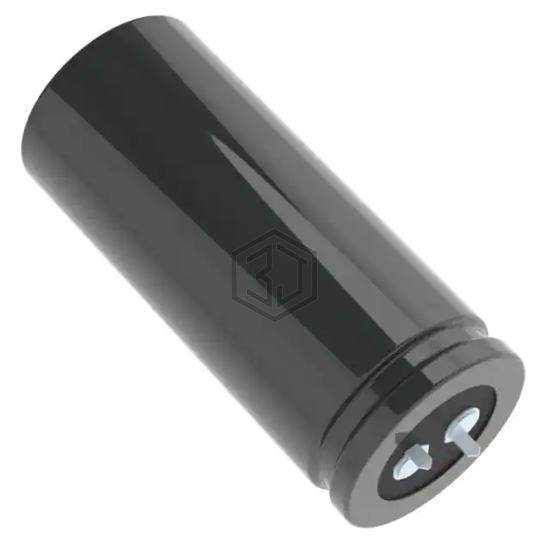

CAP ALUM 22000UF 20% 63V SNAP
ESMH630VSN223MA80T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,325
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.94 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.728 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.228" (82.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH630VSN223MA80T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 383LX223M080B092VS | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 80V SNAP | 85% | View |
| 50USC22000MEFCSN35X50 | Rubycon | CAP ALUM 22000UF 20% 50V SNAP | 85% | View |
| MAL216257223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 40V SNAP | 79% | View |
| ESMH350VSN223MA45U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SNAP | 61% | View |
| B41231A4229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 16V SNAP | 56% | View |
| MAL215876223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 25V SNAP | 56% | View |
Submit your RFQ for ESMH630VSN223MA80T and get a quote within 24 hours.
