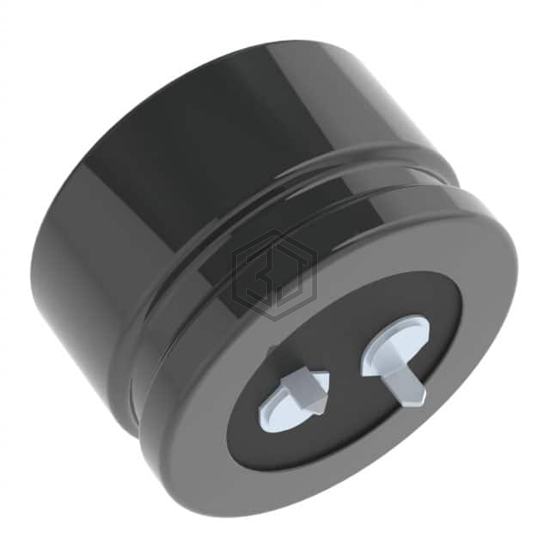

CAP ALUM 4700UF 20% 50V SNAP
ESMH500VNN472MA20T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 50V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Snap-In.
In Stock: 5,591
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH500VNN472MA20T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL205851472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 50V SNAP | 100% | View |
| B41505A478M7 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 80V SNAP | 70% | View |
| 478LMB080M2EF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 80V SNAP | 70% | View |
| LKG1C472MESACK | Nichicon | CAP ALUM 4700UF 20% 16V SNAP | 56% | View |
| EEU-TA1C472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 56% | View |
| UPA1C472MHD1TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ESMH500VNN472MA20T and get a quote within 24 hours.
