CAP ALUM 560UF 20% 400V SNAP

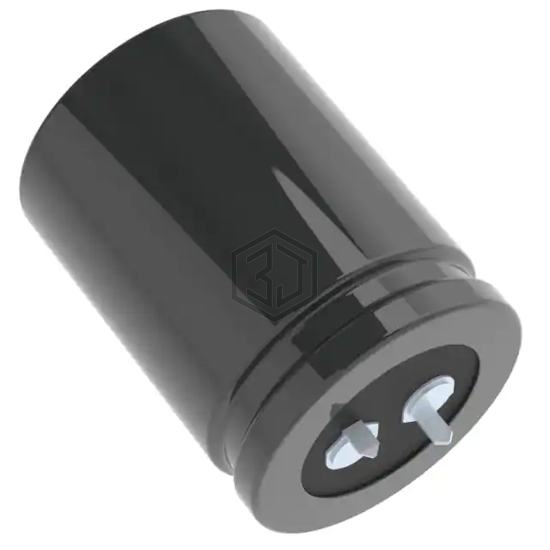

ESMH401VNN561MA45T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,176
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8467 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH401VNN561MA45T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 98% | View |
| B43547A5567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 91% | View |
| B43640B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 88% | View |
| B43511C5567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 86% | View |
| B41689A7567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 40V AXIAL | 68% | View |
| B41789A7567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 40V RADIAL | 68% | View |
Submit your RFQ for ESMH401VNN561MA45T and get a quote within 24 hours.
