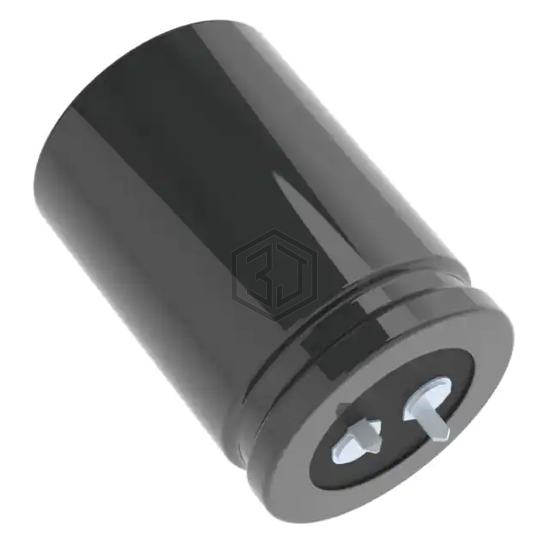

CAP ALUM 27000UF 20% 35V SNAP
ESMH350VSN273MA50T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 27000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,560
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 27000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.89 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.4412 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH350VSN273MA50T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35MXG27000MEFCSN35X50 | Rubycon | CAP ALUM 27000UF 20% 35V SNAP | 91% | View |
| ESMH250VSN273MA40W | United Chemi-Con | CAP ALUM 27000UF 20% 25V SNAP | 83% | View |
| ALC70D273DF040 | KEMET | CAP ALUM 27000UF 20% 40V SNAP | 81% | View |
| B41605B5279M8 | EPCOS - TDK Electronics | CAP ALUM 27000UF 20% 25V RADIAL | 77% | View |
| 25MXG27000MEFCSN30X40 | Rubycon | CAP ALUM 27000UF 20% 25V SNAP | 73% | View |
| EKMH250VNN273MA45U | United Chemi-Con | CAP ALUM 27000UF 20% 25V SNAP | 72% | View |
Submit your RFQ for ESMH350VSN273MA50T and get a quote within 24 hours.
