CAP ALUM 10000UF 20% 16V SNAP

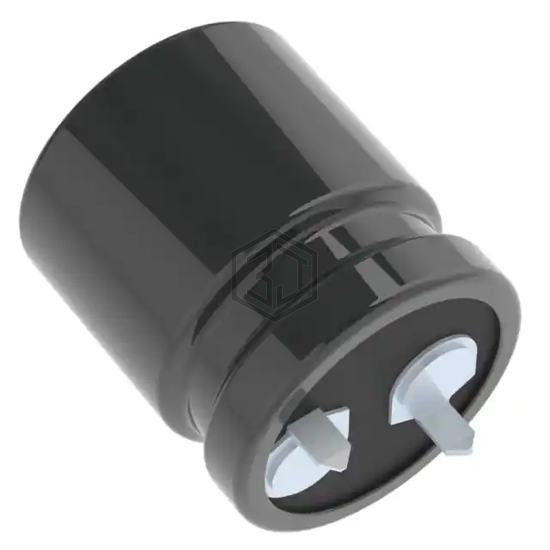

ESMH160VSN103MP25T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 10000UF 20% 16V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Snap-In.
In Stock: 3,817
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.77 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9916 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH160VSN103MP25T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1C103MESABK | Nichicon | CAP ALUM 10000UF 20% 16V SNAP | 96% | View |
| LKG1V103MESBBK | Nichicon | CAP ALUM 10000UF 20% 35V SNAP | 61% | View |
| EKMH500VNN103MR50S | United Chemi-Con | CAP ALUM 10000UF 20% 50V SNAP | 61% | View |
| ESMH350VSS103MA20M | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 56% | View |
| LP103M063H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 56% | View |
| 109LBA050M2EE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 50V SNAP | 50% | View |
Submit your RFQ for ESMH160VSN103MP25T and get a quote within 24 hours.
