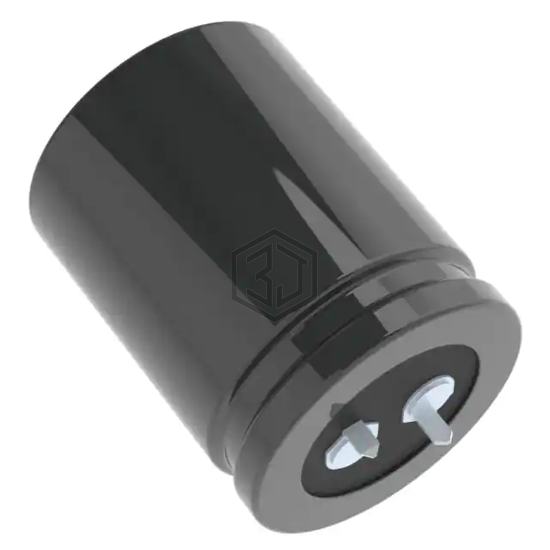

CAP ALUM 5600UF 20% 100V SNAP
ESMH101VSN562MA45T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,968
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH101VSN562MA45T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41231B8568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 63V SNAP | 74% | View |
| ESMH250VSN562MQ20U | United Chemi-Con | CAP ALUM 5600UF 20% 25V SNAP | 56% | View |
| THAS562M035AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V FLATPACK | 54% | View |
| LLS1H562MELB | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 53% | View |
| 25YXG5600MEFC18X40 | Rubycon | CAP ALUM 5600UF 20% 25V RADIAL | 52% | View |
| B41890A4568M | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 16V RADIAL | 52% | View |
Submit your RFQ for ESMH101VSN562MA45T and get a quote within 24 hours.
