CAP ALUM 5600UF 20% 100V SNAP

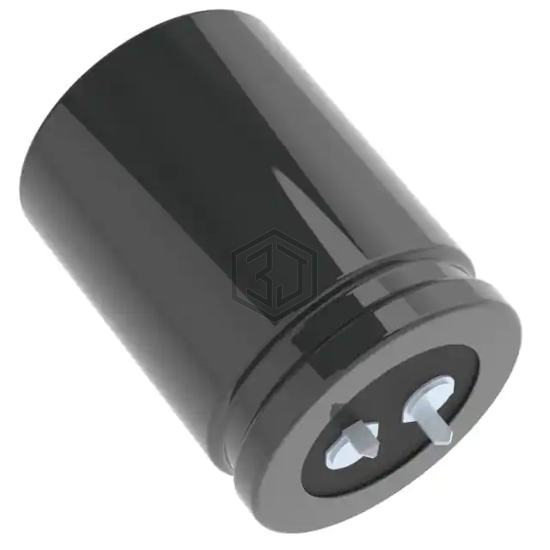

ESMH101VNN562MA45T is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,933
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ESMH101VNN562MA45T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K562MESCAK | Nichicon | CAP ALUM 5600UF 20% 80V SNAP | 80% | View |
| MAL215668562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 63V SNAP | 67% | View |
| 63MXG5600MEFCSN30X30 | Rubycon | CAP ALUM 5600UF 20% 63V SNAP | 57% | View |
| VHT5600M50 | NTE Electronics, Inc | CAP ALUM 5600UF 20% 50V RADIAL | 56% | View |
| 10ZLH5600MEFCG412.5X30 | Rubycon | CAP ALUM 5600UF 20% 10V RADIAL | 56% | View |
| MLP562M035EK0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V FLATPACK | 56% | View |
Submit your RFQ for ESMH101VNN562MA45T and get a quote within 24 hours.
